管路连接件\管路接头 |
要正确择接头管件（管路连接件,管路接头）类型: 直通、弯头、三通(T型或Y型)、四 通、六通等
接管要了解管子的材质、软硬度、内径等

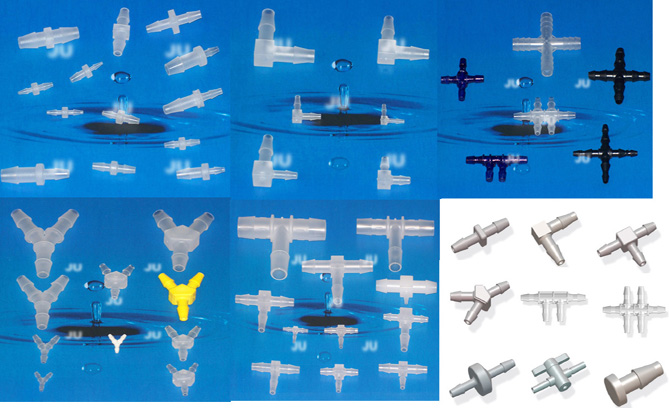

Z=直型管，L＝L型管，X＝十字型管，Y＝Y型管，T＝T型管
|
型号 |
Z1/16 |
Z 3/32 |
Z1/8 |
Z5/32 |
Z3/16 |
Z1/4 |
Z5/16 |
Z3/8 |
Z1/2 |
Z5/8 |
Z3/4 |
Z1 |
| L1/16 |
L3/32 |
L1/8 |
L5/32 |
L3/16 |
L1/4 |
L5/16 |
L3/8 |
L1/2 |
L5/8 |
L3/4 |
L1 |
| X1/16 |
X3/32 |
X1/8 |
X5/32 |
X3/16 |
X1/4 |
X5/16 |
X3/8 |
X1/2 |
X5/8 |
X3/4 |
X1 |
| Y1/16 |
Y3/32 |
Y1/8 |
Y5/32 |
Y3/16 |
Y1/4 |
Y5/16 |
Y3/8 |
Y1/2 |
Y5/8 |
Y3/4 |
Y1 |
| T1/16 |
T3/32 |
T1/8 |
T5/32 |
T3/16 |
T1/4 |
T5/16 |
T3/8 |
T1/2 |
T5/8 |
T3/4 |
T1 |
|
可接管
路内径
mm |
1.58 |
2.38 |
3.18 |
3.96 |
4.76 |
6.35 |
7.94 |
9.52 |
12.7 |
15.88 |
19.05 |
25.4 |
 |
|
